B1-S
Select Class Reader : Behind Fascia Mount

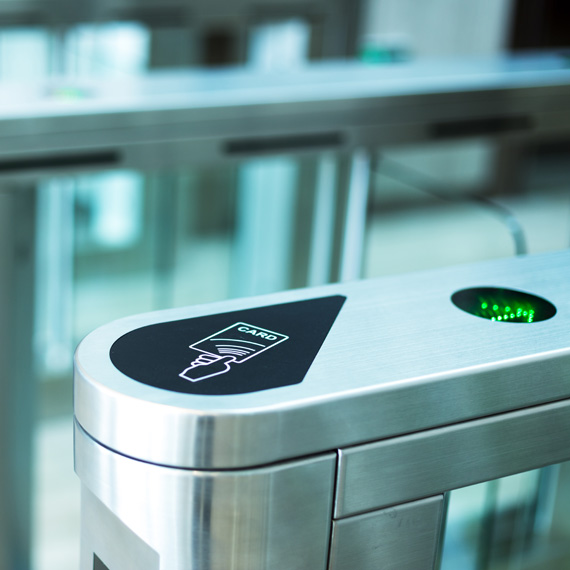

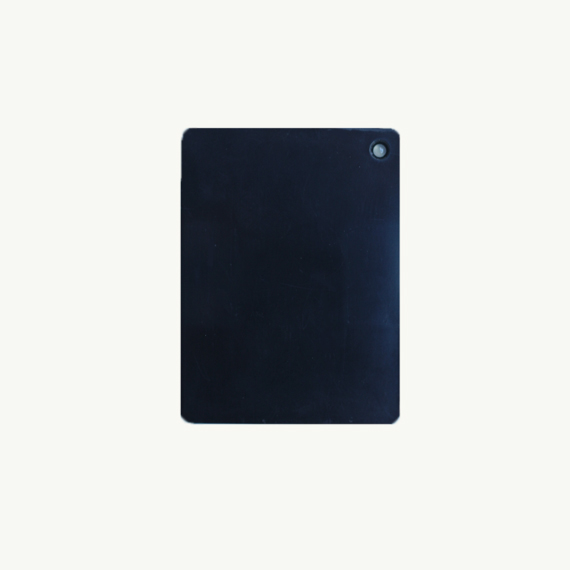

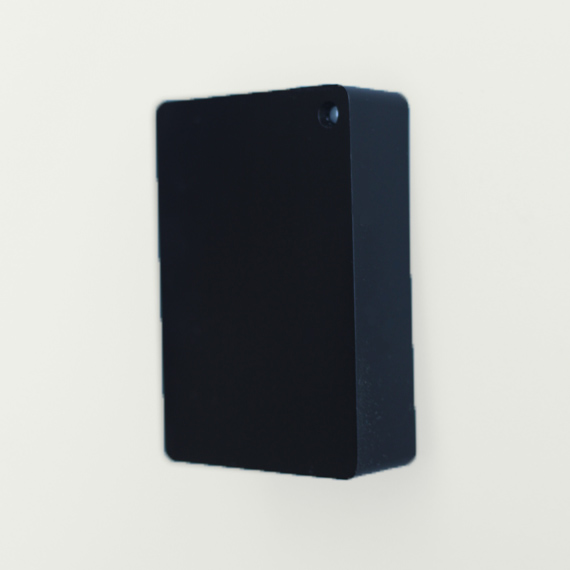

The INS Global B1-S contactless card reader is a sub-surface mounted device designed to be fitted behind a fascia. Operating at 13.56MHz, this reader is compatible with MIFARE and/or MIFARE DESFire credentials including ISO cards, clamshells and Fobs. The data output can be CSN or encoded data output via Wiegand, OSDP or RS485 encrypted protocol. The enclosure is fully encapsulated making it suitable for both indoor and outdoor applications.
Downloads
Spec Sheet
Install Guide
Specifications
| Supported Credentials | MIFARE Classic |
| Read Range | 4-6cm (typical) |
| Operating Frequency | 13.56MHz |
| Data Output | Wiegand |
| Voltage | 9-15Vdc |
| Current | 50mA (Idle) 55mA (Active) |
| Materials | PolyCarbonate enclosure Encapsulated electronics |
| Dimensions | SE1 : 90 x 90 x 18mm SE2 : 115 x 75 x 18mm SE3 : 46 x 106 x 18mm BE1 : 67 x 50 16mm |
| Operating Temperature | -10°C to +65°C |
| Environmental | IP67 |
