EM1
Encryption Module
The EM1 encryption module is installed on the data wires from the reader to convert encrypted data to standard wiegand, thus enabling use with controllers utilising wiegand inputs. Designed to be used in conjunction with encryption enabled INS readers, this solution provides secure data transmission from the reader to the controller.
As standard, data is secured using AES128bit encryption.
Downloads
Spec Sheet
Install Guide
Specifications
| Encryption | AES 128bit |
| Data Output | Wiegand |
| Voltage | 9-15Vdc |
| Current | 50mA (Idle) 55mA (Active) |
| Materials | PolyCarbonate enclosure Encapsulated electronics |
| Dimensions | SS1 : 90 x 90 x 18mm SS2 : 115 x 75 x 18mm SS3 : 46 x 106 x 18mm BS1 : 67 x 50 16mm |
| Operating Temperature | -10°C to +65°C |
| Environmental | IP67 |

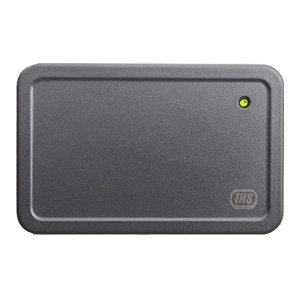

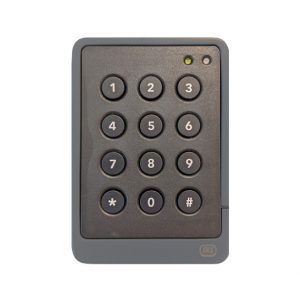

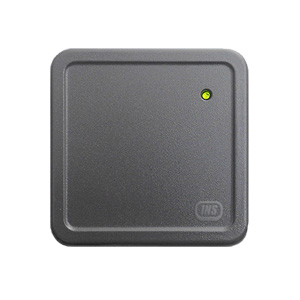

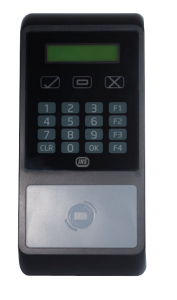

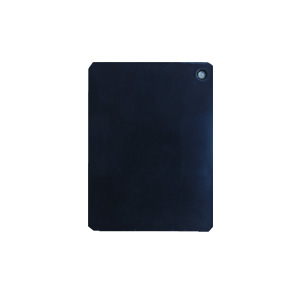

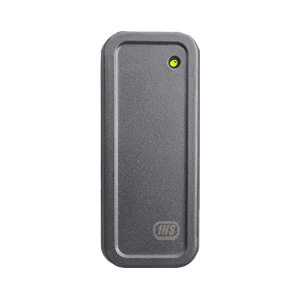

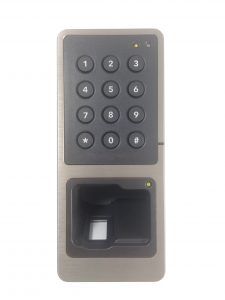

Used with these readers:
