F2-S
Select Class Reader : US/AU Gangbox : Flush Mount

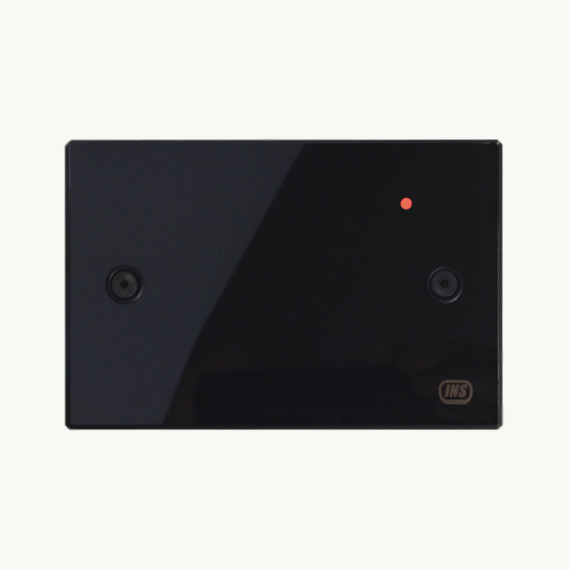

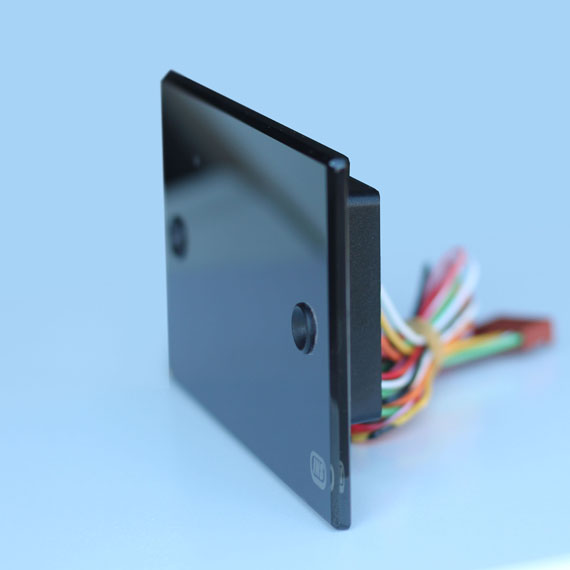

The INS Global F2-S contactless card reader is a flush mounted device fitted to a standard US/AU gangbox. Operating at 13.56MHz, this reader is compatible with MIFARE and/or MIFARE DESFire credentials including ISO cards, clamshells and Fobs. The data output can be CSN or encoded data output via Wiegand, OSDP or RS485 encrypted protocol. The enclosure is fully encapsulated making it suitable for both indoor and outdoor applications.
Downloads
Spec Sheet
Install Guide
Specifications
| Supported Credentials | MIFARE Classic MIFARE DESFire |
| Read Range | 3-6cm (typical) |
| Operating Frequency | 13.56MHz |
| Data Output | Wiegand, OSDP, RS485 |
| Voltage | 9-15Vdc |
| Current | 50mA (Idle) 55mA (Active) |
| Materials | Toughened Glass or Polycarbonate fascia PolyCarbonate rear shell Encapsulated electronics |
| Dimensions | FS1 : Fascia only : 90 x 90 x 4mm FS1 : Overall Depth : 20mm FS2 : Fascia only : 114 x 74 x 4mm FS2 : Overall Depth : 20mm |
| Operating Temperature | -10°C to +65°C |
| Environmental | IP67 |
