Hotel Class

H1

Hotel Class Reader : UK Gangbox : Flush Mount

The INS Global H1 hotel panel incorporates a contactless card reader and illuminated hotel logo in a flush mounted device fitted to a standard UK gangbox. Operating at 13.56MHz, the reader is compatible with MIFARE and/or MIFARE DESFire credentials including ISO cards, clamshells and Fobs. The data output can be CSN or encoded data output via Wiegand, OSDP or RS485 encrypted protocol.

Downloads

Spec Sheet

Install Guide

Specifications

Supported CredentialsMIFARE Classic
MIFARE DESFire
Read Range3-6cm (typical)
Operating Frequency13.56MHz
Touch Door BellH1 - No
H2 - No
H2-B - Yes
Data OutputWiegand, OSDP, RS485
Voltage9-15Vdc
Current at 12Vdc65mA (Idle)
70mA (Active)
MaterialsPolycarbonate fascia
PolyCarbonate rear shell
Encapsulated electronics
DimensionsH1 : Fascia only : 95 x 95 x 4mm

H2 : Fascia only : 155 x 80 x 4mm
Operating Temperature-10°C to +65°C
EnvironmentalIP67

Other readers in this class

View Reader
H2

H2

Flush mount hotel panel
View Reader

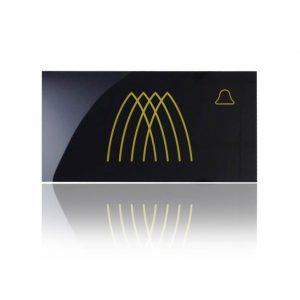

H2B
