MultiTech Class
S3-M
MultiTech Class Reader : Mullion : Surface Mount

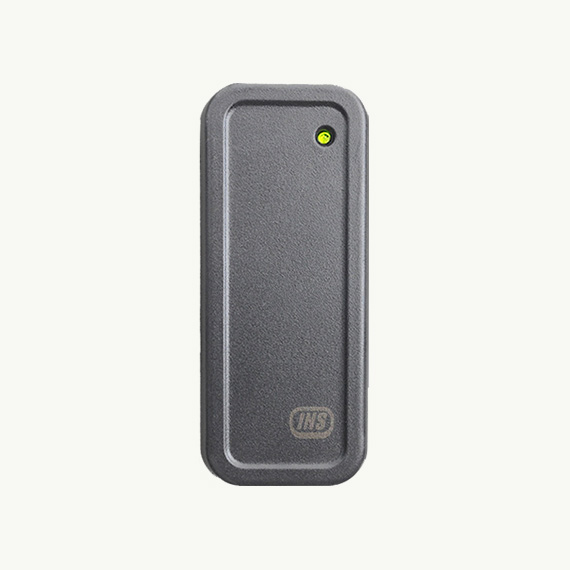

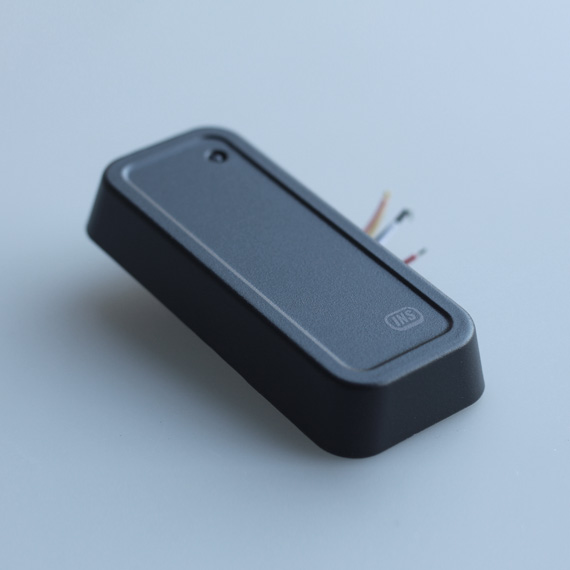

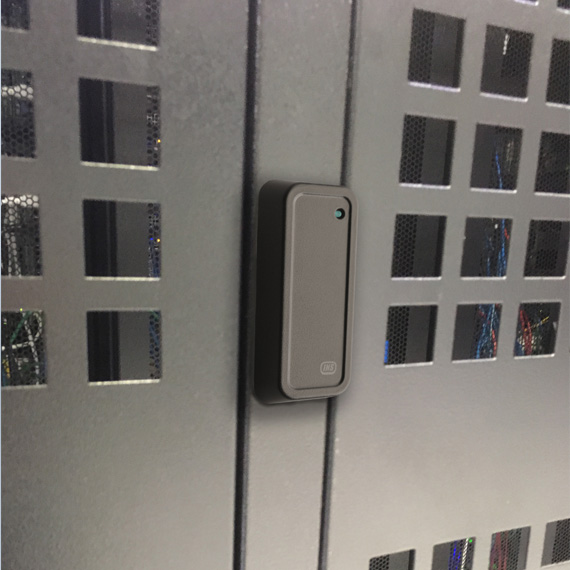

The INS Global S3-M contactless card reader is a surface mounted device fitted to a standard 2″ Mullion. Operating at both 13.56MHz and 125kHz, this reader is compatible with a range of 125kHz prox, MIFARE and MIFARE DESFire credentials including ISO cards, clamshells and Fobs. The data output can be CSN or encoded data output via Wiegand protocol. The enclosure is fully encapsulated making it suitable for both indoor and outdoor applications.
Downloads
Spec Sheet
Install Guide
Specifications
| Supported Credentials | MIFARE Classic MIFARE DESFire EM proximity HID proximity |
| Read Range | 3-7cm (typical) |
| Operating Frequency | 13.56MHz and125kHz |
| Data Output | Wiegand, OSDP, RS485 |
| Voltage | 9-15Vdc |
| Current | 100mA (Idle) 120mA (Active) |
| Materials | PolyCarbonate enclosure Encapsulated electronics |
| Dimensions | SM1 : 90 x 90 x 18mm SM2 : 115 x 75 x 18mm SM3 : 46 x 106 x 18mm BM1 : 67 x 50 16mm |
| Operating Temperature | -10°C to +65°C |
| Environmental | IP67 |
